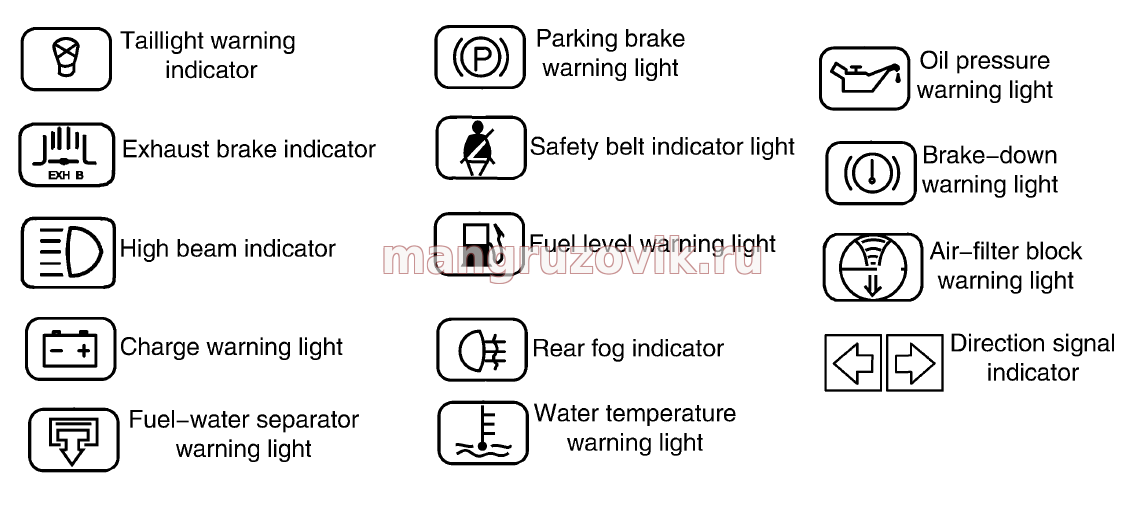

Dongfeng DFA1101GZ5AD6J обозначение предупреждающих значков на приборной панели и устройство щитка приборов.
рис
устройство щитка приборов Dongfeng DFA1101GZ5AD6J
Constitution and function The instrument panel assembly is consisted by speedometer, tachometer, water temperature meter, fuel meter, warning system (14 warning indicator), and matched with the sensor and warner. Disassembly
рис

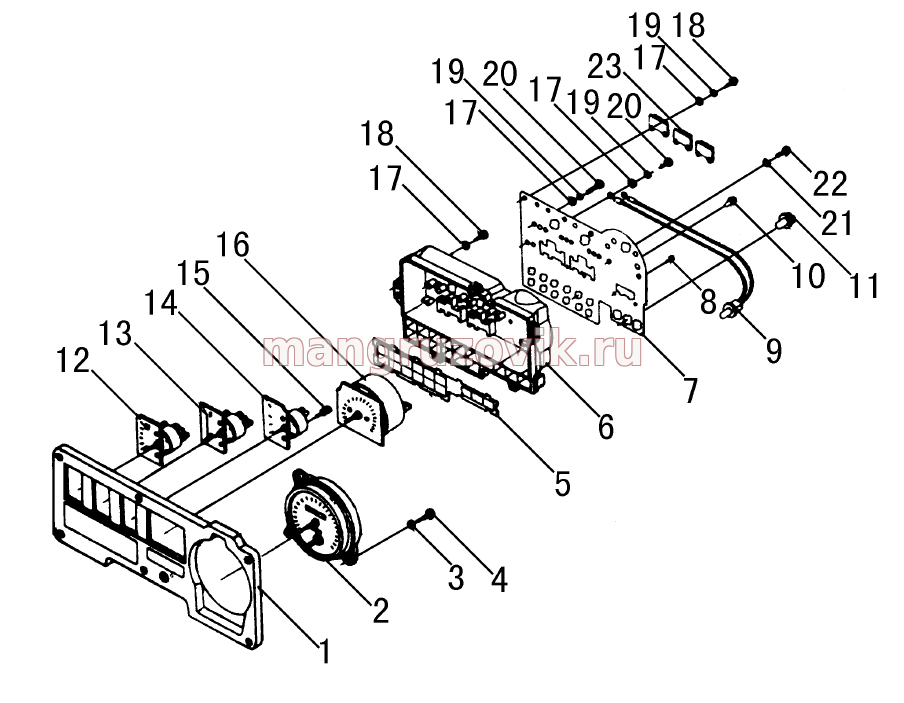

1.Panel assembly 2.Speedometer 3.Washer 4.Self-tapping screw 5.Warning lamp pattern piece 6.Big case 7.Soft printed circuit board 8.Nylon rivet 9.Speedometer lighting bulb holder 10.Small warning signal lamp bulb holder assembly 11.Big warning signal lamp holder 12.Oil pressure gauge assembly 13.Fuel level gauge 14.Water temperature gauge 15.Small gauge transition connector 16.Electronic tachometer 17.Washer 18.Self-tapping screw 19.Spring washer 20.Screw 21.Spring washer 22.Screw 23.Small gauge voltage drop resistor |
