Dongfeng DFA1101GZ5AD6J-907 воздушная схема тормозной системы

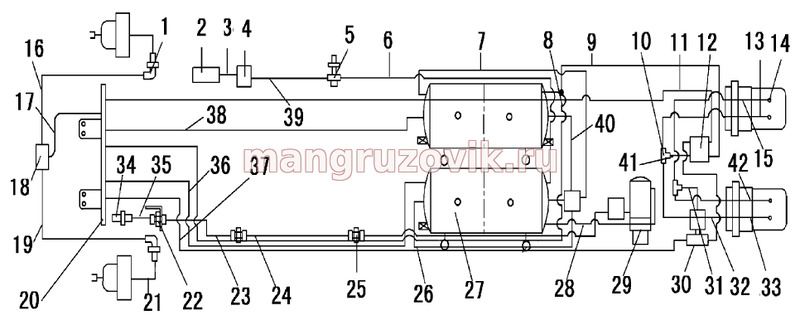

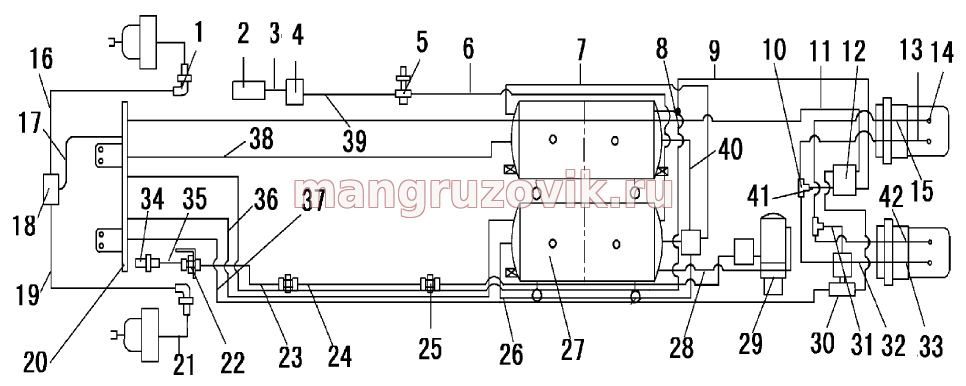

Frame Brake Pipeline
1.Elbow fitting 2.Exhaust brake valve assembly 3.Air line assembly-- electromagnetic valve toexhaust brake valve 4.Fitting, tube 5.Three way fitting 6.Nylon pipe assembly 7.Nylon pipe assembly 8.Nylon pipe assembly 9.Nylon pipe assembly 10.Three way fitting 11.Nylon pipe assembly 12.loading sensing valve assembly 13.Air line assembly 14.Fitting 15.Air line assembly 16.Nylon pipe assembly 17.Nylon pipe assembly 18.Quick release valve subassembly 19.Nylon pipe assembly 20.Hose assembly 21.Hose assembly 22.Hose bracket 23.Hose assembly 24.Fitting, elbow 25.Hose assembly 26.Nylon pipe assembly 27.Hose assembly 28.Air line assembly--desiccator to dampAir tank assembly 29.Air desiccator and unloader valve subassembly 30.double direction valve and Quick release valve subassembly 31.Hose assembly 32.Nylon pipe assembly 33.Hose assembly 34.Fitting, elbow 35.Hose assembly 36.Nylon pipe assembly 37.Nylon pipe assembly 38.Nylon pipe assembly 39.Nylon pipe assembly 40.Nylon pipe assembly 41.Hose assembly 42.Air line assembly Dongfeng DFA1101GZ5AD6J-907 устройство и электросхема отопителя и кондиционера. Dongfeng DFA1101GZ5AD6J обозначение значков на приборной панели и устройство Dongfeng DFA1101GZ5AD6J-907 электрическая схема приборной панели Dongfeng DFA1101GZ5AD6J электрическая схема подключения звуковых сигналов Dongfeng DFA1101GZ5AD6J-907 электрическая схема дворников, стеклоподъемников, зеркалов, печки Dongfeng DFA1101GZ5AD6J-907 аварийка и повороты электрическая схема Dongfeng DFA1101GZ5AD6J-907 предохранители и реле
|
