Freightliner LLC. Описание комплектации двигателя MBE900.
Фредлайнер.Описание и местонахождение датчиков и узлов на двигателе MBE900. рис 1

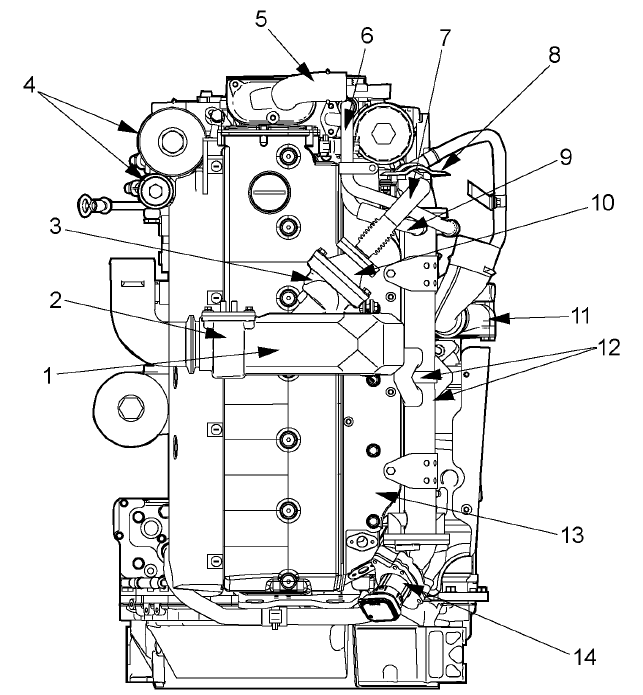

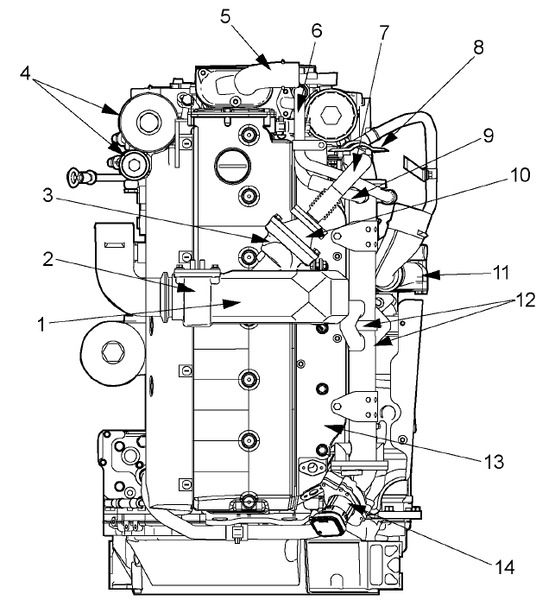

1. Charge Air Tube 2. Grid Heater 3. Reed Valve (904, 924 and 926 models only) 4. Fuel Filter Pre and Main 5. Thermostat Cover and Housing 6. Coolant Inlet Tube 7. EGR Delivery Pipe 8. EGR Cooler Flange Heat Shield 9. Coolant Return Tube 10. EGR/CA Mixer 11. Turbocharger 12. EGR Cooler (upper and lower) 13. Charge Air Housing 14. EGR Rotary Valve
Figure 4d Top View of EGR Components All
рис 2

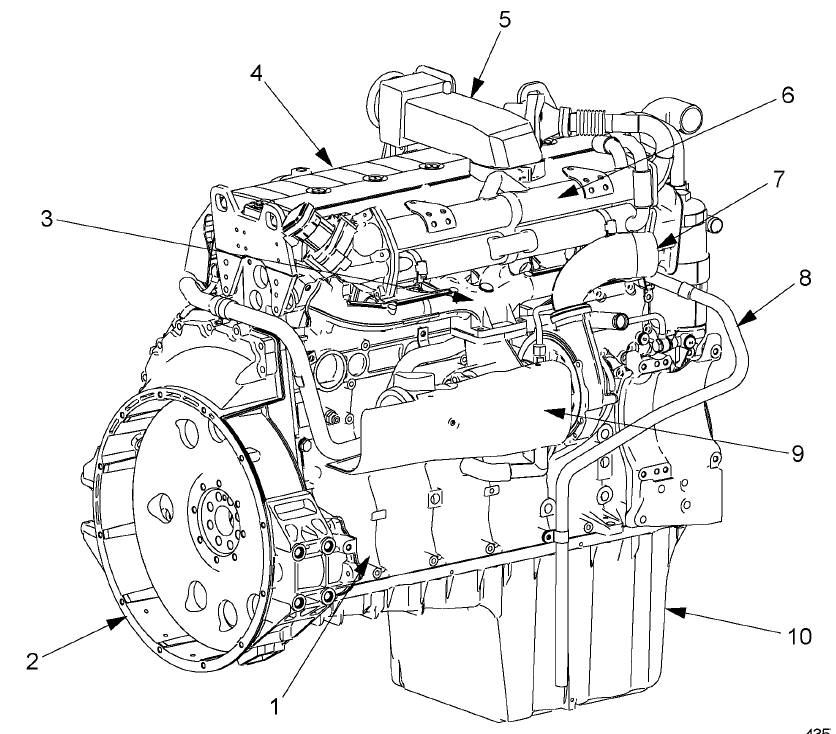

1. Starter Motor 2. Flywheel Housing 3. Exhaust Manifold 4. Cylinder Head Cover 5. Air Intake Manifold 6. EGR Cooler 7. Turbocharger Compressor Out 8. Breather Tube 9. Turbocharger Heat Shield 10. Oil Pan
Figure 4e Right Rear View of MBE 900 2004 EGR Engine and Components
рис 3

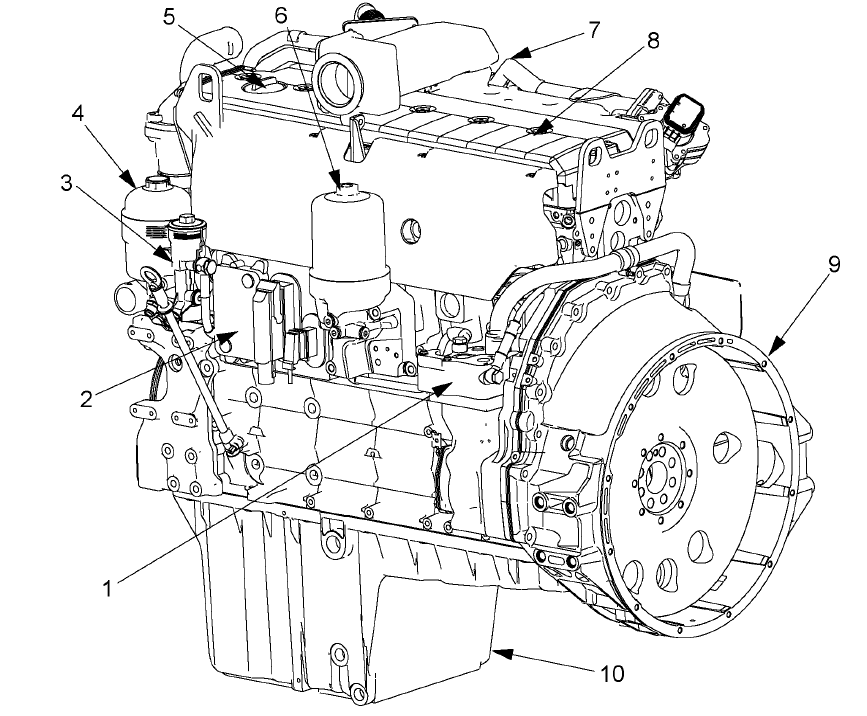

1. Air Compressor 2. DDEC-EC U 3. Pre Filter 4. Main Fuel Filter 5. Oil Fill Cap 6. Oil Centrifuge 7. Air Intake Manifold 8. Cylinder Head Cover 9. Flywheel Housing 10. Oil Pan
Figure 4f Left Rear View of MBE 900 2004 EGR Engine and Components
Идентификатор двигателя IDENTIFICATION Engine Identification Number The engine identification number is lasered in large font onto an enlarged labeling surface on the rear right block. See Figure 5. The etched identification number contains the type reference followed by a sequential manufacturing number. See Figure 6.
рис 4

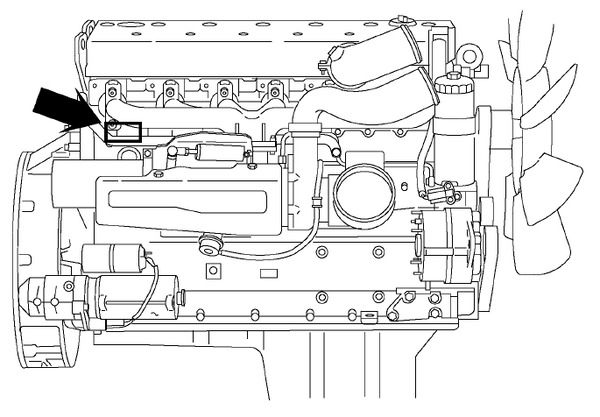

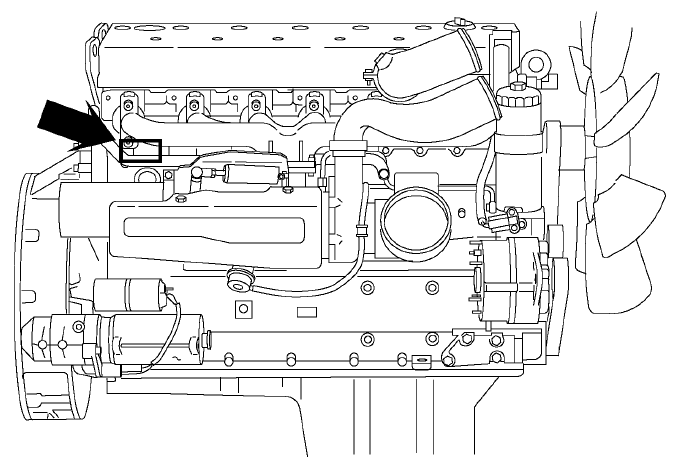

Табличка с идентификатором двигателя находится, куда указывает стрелка.
|
