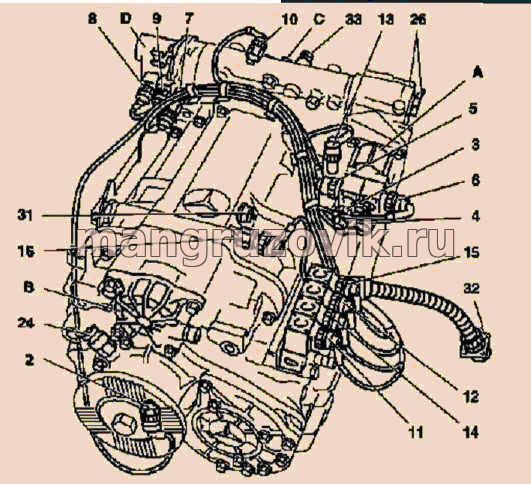

Даны описание датчиков и исполнительных элементов на коробке передач.Местоположение каждого элемента и функционал.
2 EPS speed sensor (3 electrical connections)
3 Solenoid valva (MUB), odd numbered gear cylinder pressurizing
4 Solenoid valve(MGB), even numbered gear cylinder pressurizing
5 Solenoid valve (MUE), odd numbered gear cylinder depressurizing
6 Solenoid valve (MGE), even numbered gear cylinder depressurizing
7 Gear sensor (SGG)
8 Solenoid valve (MG1), reverse gear on gate cylinder
9 Solenoid valve (MG2), 3/4 and 7/3 gear on gate cylinder
10 Gate sensor (SGE)
11 When hill-climbing transmission is used, splitter solenoid valve (MS1) shits into the low-speed group and whan overdrive transmission is used,
spliter solenoidvalve (MS1) shifts into the high-speed group
12 When hill-climbing transmission is used, splitter solenoid valve (MS2) shifts into the high-speed group and when overdrive transmission is used,
splitter solenoid valve (MS2) shifts into the low-speed group
13 Splitter sensor (SSP)
14 Solenoid valve (MR1)I cylinder pressurizing, tow-speed range group
15 Solenoid valve (MR2), cylinder pressurizing, high-speed range group
16 Range group sensor (SRA)
24 Tachograph speed sensor
26 Manual emergency shift
31 Reserve lamp switch
32 Centra! connector
33 Neutral position switch
A 3-position gear cylinder
8 2-position range group cylinder (range)
C 2-position splitter cylinder
D 3-position gate cylinder
3-position gear cylinder, neutral, even numbered and odd
numbered gears
2-position range group cylinder, low-speed range (gears 1-4),
high-speed (gears 5-8)
2-position splitter cylinder
D 3-position gate cylinder, gates 1 and 2 or 5 and 6, fixed by spring, gate R and 3 and 4 or 7and 8 controlled by cornpressed-alr.

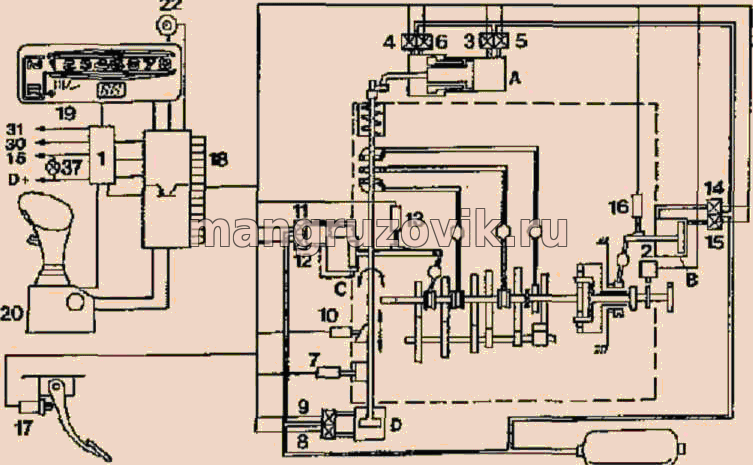

1 EPS module
2 Speed sensor, transmission output speed
3 MUB, solenoid valve-odd numbered gears-pressurizing 1,3, 5, 7, R
4 MGB, solenoid valve-even numbered gears-pressurizing 2, 4, 6, 8
5 MUE, solenoid valve -oddnumbered gears - deprassurizing I, 3, 3, 7, ft
6 MGE, solenoid valve -even numbered gears - de-pressurizing 2,4,6,8
7 SGG, gear sensor, neutral, even numbered and odd numbered gears
8 MG1, solenoid valve - gate R
9 MG2, solenoid valve - gates 3 and 4 or 7 and 8
10 SGE, gate sensor, gates 1 and 2, gate R, gates 3 and 4
11 MS1, splitter solenoid valve, i - low-speed
12 MS2, splitter solenoid valve, i = high-speed
13 SSP, splitter sensor
14 MR1, range group solenoid valve - range - gears 1-4
15 MR2, range group solenoid valve - range - gears 5-8
16 SRA, range sensor - range group
17 SKU, clutch sensor
18 Control electronics
19 Display, gear displsy with fault lamp and fault code display
20 Sensor, shift lever with function button, splitter switch and emergency switch
22 Warning buzzer
37 Generator charge indicator lamp
