Dongfeng DFA1101GZ5AD6J-907 предохранители и реле, подходит к DFA1063DJ10(14)-301/303
In the normal conditions, the output of alternator reaches ignition switch, lighting and instruments by the way of two fusible wires. If the alternator fusible wires are burnt, the above systems will continue to operate using the battery power. But if the engine stops at the time, the systems can't start until replace the fusible wires. The fusible wire must be replaced immediately to prevent the battery from over discharging. Bedsides the safety control described above, there are another 6 small relays: start relay, ignition relay, heater relay, A/C relay, radiator relay, and horn relay.

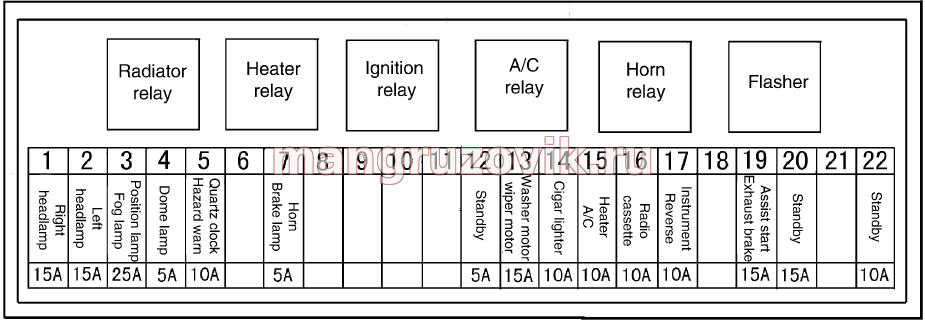

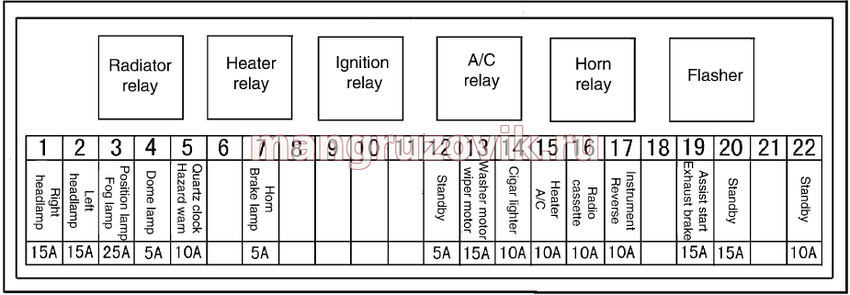

Constitution Power supply division: Alternator, battery Starting system Power supply warning system Instrument indicator system Lighting system Others: Wiper, horn, cigar lighter, radio cassette player Features Using integrated alternator Using electromagnetic main power switch Two fusible wires at starter 22-way fuse box The complete truck wiring The wires of 22-way fuse box of the complete truck are connected as follow. |
