VOLVO VM Предохранители и реле
VOLVO VM Предохранители и реле

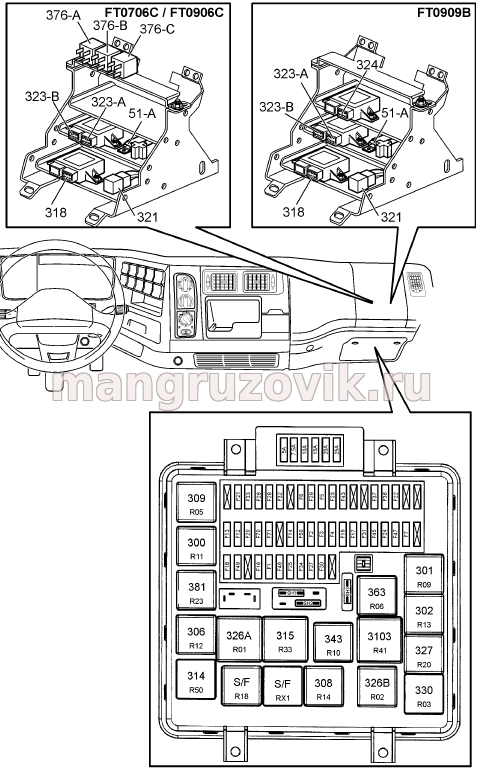

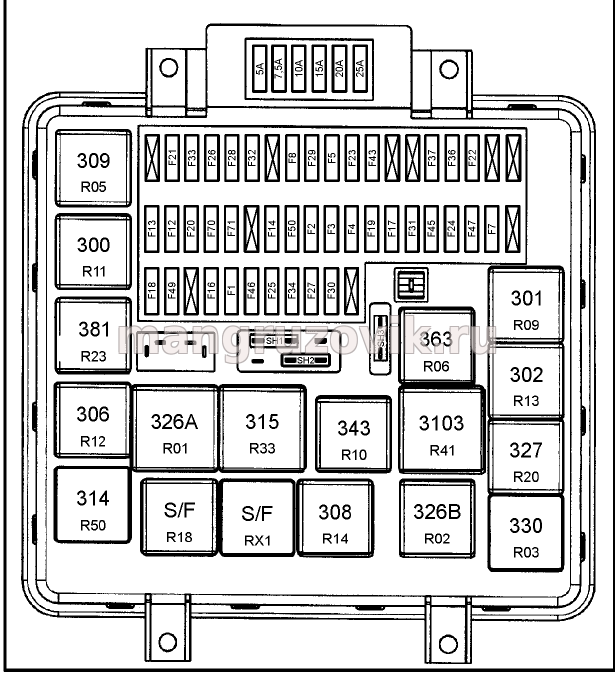

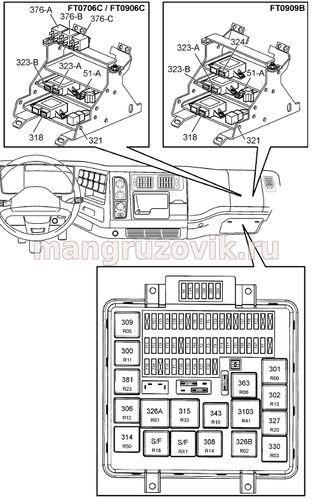

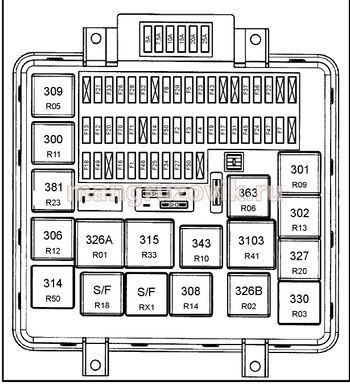

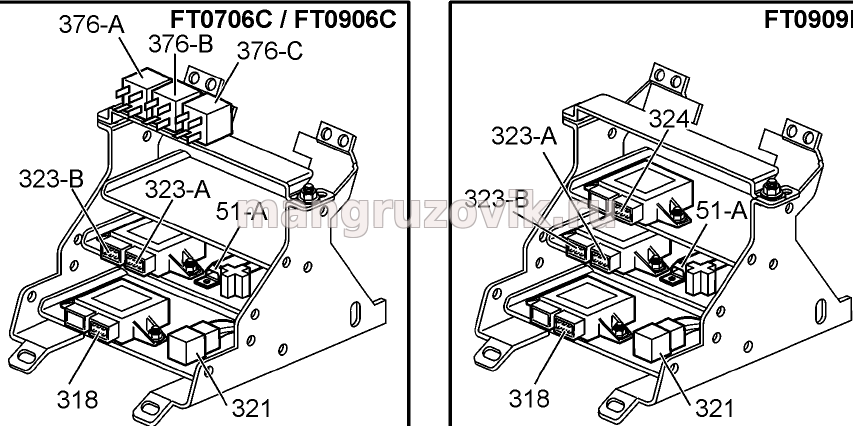

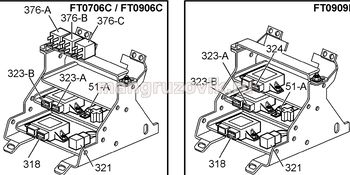

List of fuses
F1 Engine brake / Brake light   -- (CK5)
F2 Front position light / Right tail light  (CE6)
F3 Roof position light / Left tail light  (CE11)
F4 Trailer position light. (CE21)
F5 Implement position light (Van)  -- (CE23)
F7 Power take-off (LD6)
F8 Fog lights / left rear fog light   (CG9)
F12 Left dipped beam light    -- (CE33)
F13 Right dipped beam light    (CE38)
F14 Full beam light / Spotlight   -- (CE48)
F16 Tachograph (instrument panel)  -- (NA19)
F17 Radio (converter 12 V)    (AA46)
F18 Air conditioning (HA21)
F19 Fuel preheater (HM11)
F20 Extra relay for implement    (EZ20)
F21 Implement interior light (Van) + 24 V (kl. 30)-- (OA1)
F22 Climate unit  (HD5)
F23 Interior light / Instep lighting   (ER19)
F24 Electric window control    (KA3), (KB3)
F25 Tachograph (main switch by pass)  (AA16)
F26 Horn   (FA6)
F27 Brake light  (CK11)
F28 Implement interior light (Van)   (OA14)
F29 Rear view mirror demister   -- (HG15)
F30 Cigarette lighter (AA39)
F31 Not used  -- (AA43)
F32 Windscreen wiper and washer  -- (GA17)
F33 Not used  --
F34 Direction indicators / warning light  (AA19)
F36 Not used
F37 Interior light / Doors central lock / Rear view mirror control (ER37)
F43 Not used  -- (EX3)
F45 Doors central lock. (AA21)
F46 Immobilizer  (EA4), (HC6),(HG11), (HM8)
F47 Extra connection for bodybuilder  (EZ6)
F49 Range gear inhibitor(LS4)
F50 Not used  --
51A Engine stop solenoid valve   (AA53)
51H Starting preheater. (HC10)
Volvo Truck Corporation Date Group No. Release Page
Service Bulletin 11.03 370 132 01 66(74)
51X Control unit, alarm. (NK3)
51Y Control unit, alarm. (NK6)
F70 Bogie   (MA6)
F71 Not used


300 Relay, dipped beam lights   (CE25)
301 Relay, fog lights-- (CG7)
302 Relay, spotlights-- (CE50)
306 Relay, full beam lights    (CE44)
308 Relay, brake light. (CK5)
309 Relay, parking light(CE10)
310 Relay, extra direction indicator, left (CN10)
311 Relay, extra direction indicator, right (CN15)
312 Relay, starting preheater   -- (HC7)
314 Relay, bogie (MA4)
315 Relay, starting motor    -- (AA6)
318 Relay, engine brake    -- (CL10)
321 Relay, windscreen intermittent wiper (GA12)
323 Relay, direction indicators   (CN2)
324 Relay, range gear inhibitor   (LS3)
326A Relay, starting switch, position 15 (kl. 15)(AA48)
326B Relay, electric windows    (AA55)
327 Relay, rear view mirror demister  (HG14)
330 Relay, windscreen wiper   -- (GA15)
343 Relay, rear fog light(CG18)
363 Relay, not used-- (AA42)
376A Relay, power take-off    (LD8)
376B Relay, power take-off    (LD5)
376C Relay, power take-off    (LD8)
381 Relay, not used (ER10), (EZ20)
3101 Relay, implement interior light (Van) (OA16)
3103 Relay, fuel preheater  (HM10)
