VOLVO FL7, FL10.FL12 Предохранители и реле
VOLVO FL7, FL10. FL12 Предохранители и реле


Предохранители

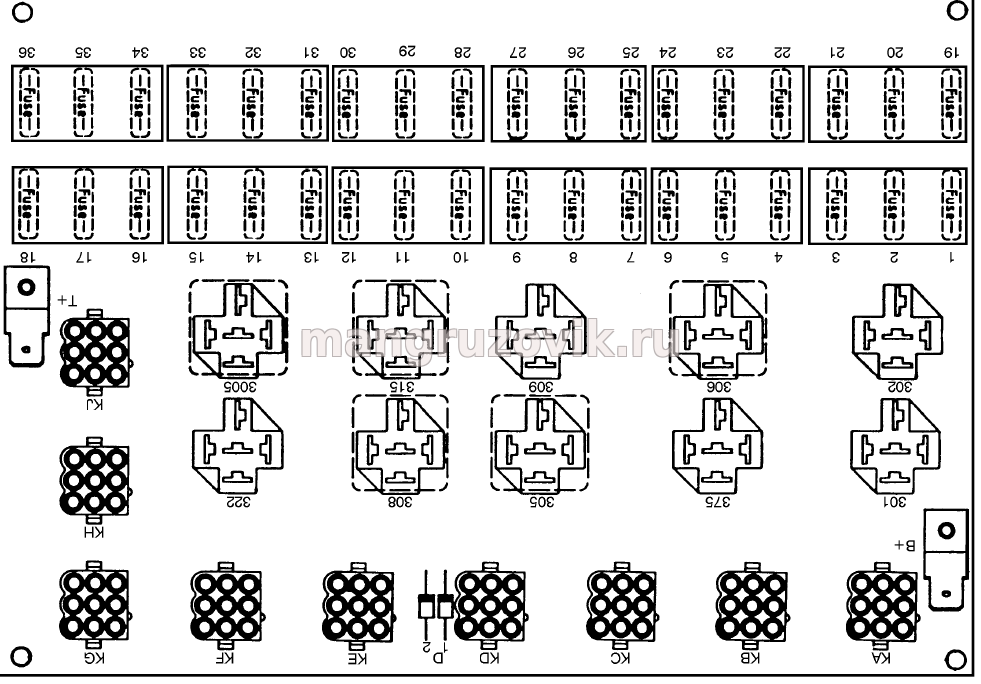

Fuses on circuit board (32) electrical centre
1 Spot light - (CE64)
2 Fog light, front and rear  (CG6)
3 Full beam right - (CE45)
4 Full beam left - (CE41)
5 Interior light, speed limiter, radio,INFOSYST, tachograph  (ER23)
6 Dipped beam left, headlight levelling device
7 Day running light - (CE12)
8 Dim-dip - (CE50)
9 Park. light left, roof light right, ID-light (CE18)
10 Park. light trailer, left - (CE3)
11 Rotating warning light, extra trailer
12 Relay preheating - (AA8)
13 Bogie lift, kick down, AVGASB4, XB2 (XD11)
14 Switch extra equipment, XA2 . (XD14)
15 Combination relay, combination instrument,indicator lamps, driver information system, relay extra equipment, relay full beam  (BB24)
16 Safety belts, dir. ind. - (CN2)
17 Diff lock, PTO, range inhibitor, instrument. (LG11)
18 Windscreen and headlight wiper and washers, combination relay, solenoid valve range, exhaust pressure governor  (GA34)
19 Parking heater  (HC27)
20 Fog light rear - (CE23)
21 Full beam flash - (CE55)
22 Hazard  (CN5)
23 Day running light - (CE37)
24 Dipped beam right  (CE43)
25 Air dryer, buzzer, extra equipment - (HK6)
26 Timer parking heater - (HC21)
27 Park. light right, roof light left, DIM-DIP,buzzer, switch illumination, XB1 - (CE20)
28 Park. light trailer right . (CE5)
29 Loading light, reversing light - (EA6)
30 Brake light  (CK7)
31 Horn . (XD5)
32 Air suspension, powertronic  (XD8)
33 Heated mirror, heated seat . (HG7)
34 Heater fan . (HA18)
35 Headlight wiper and washer  (GA28)
36 Cig. lighter  (EV4)

реле

Relays on circuit board (32) electrical centre
301 Relay, fog lights  (CG5)
302 Relay, spot lights . (CE60)
305 Relay, reversing lights - (EA5)
306 Relay, full beam - (CE28)
308 Relay, brake lights - (CK5)
309 Relay, parking lights - (CE9)
315 Relay, starting switch  (XD4)
322 -
375 Relay, day running lights . (CE33)
3005 Alternator-controlled relay - (AA26)

6–unit fuse holder
56 Superstructure  (XA12)
56 Superstructure  (XA14)
56 Superstructure  (XA16)
56 Superstructure  (XA18)
56 Superstructure  (XA2)
56 Superstructure  (XA4)
56 B ”1” ABS . (OA2)(OB2)
56 B ”2” ABS . (OA5)(OB5)
56 B ”3” ABS . (OA8)(OB8)
56 B ”5” ABS . (OA11)(OB11)
56 B ”6” ABS . (OA14)(OB14)
56 F ”1” Relay box, EDC . (LO72)
56 F ”2” Geartronic . (LO74)
56 F ”2” Powertronic - (LP43)
56 F ”3” Relay box , EDC, geartronic, powertronic - (AA30)
56 F ”4”  (AA32)
57 F”5” Cruise control . (BN67)
56 F”6
