Рено Премиум DXI описание предохранителей
Предохранители Рено Премиум DXI 11.


Renault Premium с двигателем DXI.начиная с 2000 г. и заканчивая грузовиками 2014 г.

 Blok-predohranitelej-Renault

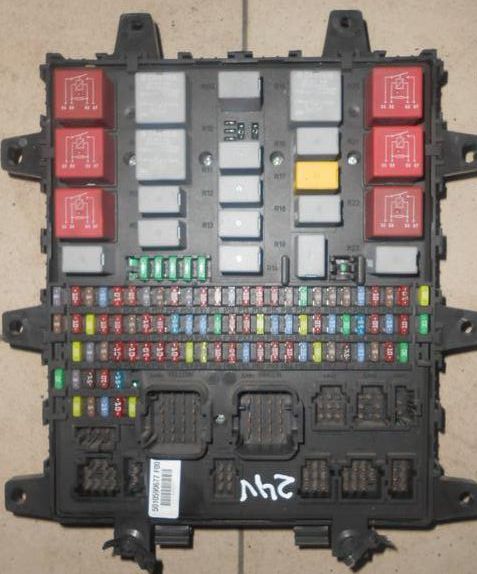

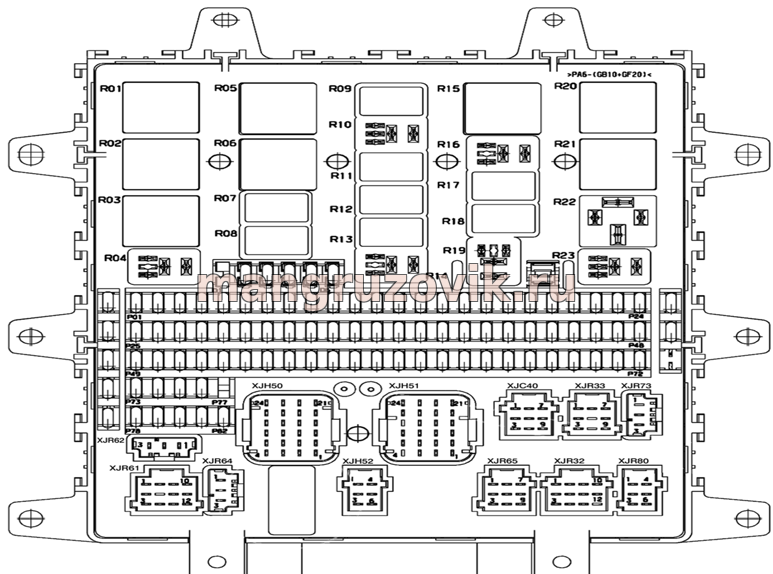

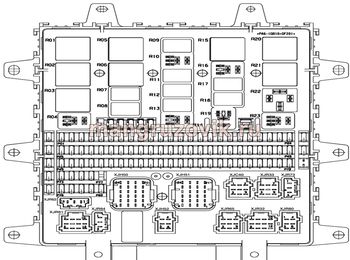

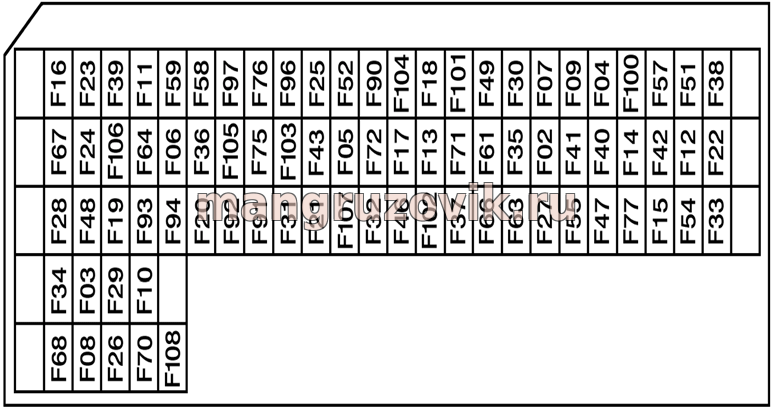

Это центральный блок предохранителей. В нем обозначены позиции плавких элементов, от P01 до P82. Далее пойдет отдельное изображение, где они будут распологатся внутри Position с обозначение F.


Cab tilting safety and authorization relay F03

Cab tilting motor power supply relay  F03

Principal information display F04

Headlamps wash pump motor F05

Principal information display F06

Tachograph F07

Vehicle management ECU F07

Principal information display F08

Engine immobilizer ECU F08

Alarm ECU F08

Doors central locking ECU F08

Air production management ECU F08

Bodybuilder pre-arrangement management ECU F09

Air conditioning ECU  F10

Hydraulic retarder ECU F11

Gear selector ECU F12

Automatic transmission ECU F12

Lighting and signalling management ECU  F13

Windscreen wipers drive motor F13

Windscreen wash pump motor  F13

Windscreen wipers motor time-delay relay  F13

Cigar lighter F14

Vehicle diagnostic socket F15

Vehicle data extraction socket F15

Selection control F16

Inter-wheel diff. lock warning light  F16

Bodybuilder pre-arrangement management ECU  F16

EBS braking management ECU  F16

Rear wheels diff. lock electrovalve  F16

PTO engagement electrovalve N° 1 F16

PTO engagement electrovalve N° 2  F16

VTC engine brake electrovalve  F16

"Low speed" selection control electrovalve F16

Transfer box diff. lock control solenoid valve F16

Transfer box neutral engagement control  F16

PTO N° ° 3 engagement electrovalve  F16

RH main beam headlight  F17

Electric horn  F18

Air horn  F18

Air conditioning ECU F19

Radio set F20

Alarm ECU F20

Doors central locking ECU  F20

ABS/EBS trailer socket  F21

Driver's side single overhead light  F22

Front passenger's side single overhead light  F22

RH upper overhead lighting (door) F22

Driver's reading spotlight  F22

Front passenger's reading spotlight  F22

Bottom bunk overhead lighting  F22

LH upper overhead lighting (door) F22

LH overhead lighting (ambience) F22

RH overhead lighting (ambience) F22

Top bunk overhead lighting  F22

Driver's side stepwell lighting  F22

Front passenger's side stepwell lighting  F22

Piloted axle lockover angle sensor  F23

Piloted axle lockover angle sensor F23

Air suspension ECU F23

Piloted axle ECU 110 F23

Fuel heater resistor N° 2 F24

Available power supply  F25

Available power supply (lighting)  F25

Equipment in unlocked position warning light  F25

Equipment lighting information tell-tale light  F25

15-pin trailer socket  F25

Available power supply (after ignition) F26

Driver's door window winder motor F27

Front passenger's door window winder motor  F27

EBS braking management ECU  F28

Automatic transmission gear selector F29

FMS - GATEWAY management ECU F29

Lighting and signalling management ECU  F30

Principal information display  F31

Air/air add-on heater F31

Air conditioning ECU  F31

Available power supply (after master switch) F32

Cab tilting motor  F33

FMS - GATEWAY management ECU F34

Lighting and signalling management ECU  F36

Voltage converter (24 / 12V - 15A) F37

Radio set  F37

Extra signalling lights warning light  F38

Working spotlight  F38

Vehicle management ECU  F39

LH defrosting rearview mirror resistor  F39

RH defrosting rearview mirror resistor  F39

Heated F39

Windscreen defrosting control relay  F39

Engine management ECU  F40

Starter F40

Starting relay  F40

Air preheating relay  F40

Engine brake N° 1 solenoid valve  F40

VTC engine brake electrovalve  F40

Range change electrovalve  F40

Splitter control electrovalve  F40

Air dryer bleeding solenoid valve  F40

Engine cooling fan speed regulation solenoid valve 6 F40

Starter F41

Starting relay  F41

Engine brake N° 1 solenoid valve  F41

VTC engine brake electrovalve  F41

Range change electrovalve  F41

Splitter control electrovalve  F41

Air dryer bleeding solenoid valve  F41

Air preheating relay  F42

Engine cooling fan speed regulation solenoid valve F42

24 Volts power supply socket  F43

Automatic gearbox diagnostic socket  F43

Revolving beacon N° 1  F46

Revolving beacon N° 2  F46

Revolving beacons power supply relay  F46

Air production management ECU  F47

Brake holding enabling control F48

EBS braking management ECUF48

Air suspension ECU F49

Vehicle power supply management ECU (ADR) F49

Piloted axle ECU  F51

Automatic transmission gear selector  F52

Cab emergency stop control  F52

Vehicle management ECU  F52

Engine immobilizer ECU  F52

After ignition power supply relay N° 1  F52

After ignition power supply relay N° 2 F52

After ignition power supply relay N° 3  F52

Accessories power supply relay N° 1 F52

Accessories power supply relay N° 2  F52

Alternator circuit earthing relay (ADR) F52

Alternator circuit draw resistor  F52

 Vehicle diagnostic socket  F52

Pre-arrangement for onboard management (ECU) F54

Hydraulic retarder ECU  F57

Cab emergency stop control  F58

Alternator circuit earthing relay (ADR) F58

Pre-arrangement for onboard management (ECU) F59

Brake holding enabling control  F59

Reversing lights power supply relay F59

24 Volts power supply socket  F63

15-pin trailer socket F64

Tool compartment light  F66

Front grille lighting  F66

Electric roof air vent motor F66

Gear selector ECU 120 F67

Automatic transmission ECU F67

 Voltage converter (24V / 12V)  F68

Refrigerated compartmentF68

Refrigerator  F68

Extra 24 Volts power supply socket  F68

ABS/EBS trailer socket  F70

Available power supply (after ignition) F71

Main beam headlights warning lightF72

LH dipped beam headlight F72

Available power supply at alternator F75

RH heated seat unit F75

LH heated seat unit  F75

Vehicle hour-meter  F76

Air/air add-on heater F76

Alternator circuit earthing relay (ADR) F76

Air/water add-on heater solenoid valve  F76

Available power supply (after master switch) F77

Lighting and signalling management ECU F90

Rear fog lights power supply relay F90

Main beam headlights power supply relay  F90

Fog driving lights power supply relay  F90

Switches night lighting power supply relay  F90

RH clearance light N° 1  F91

RH clearance light N° 2  F91

LH front side/parking lights  F91

RH clearance lights N° 3  F91

RH clearance lights N° 4  F91

RH rear side/parking lights  F91

Roof LH side/parking lights  F91

Sunshade-mounted LH marker lights  F91

Vehicle power supply management ECU (ADR) F91

RH front side/parking lights  F92

LH clearance lights N° 3 F92

LH clearance lights N° 4 F92

LH clearance lights N° 1 F92

LH clearance lights N° 2  F92

LH rear side/parking lights  F92

Roof LH side/parking lights  F92

Sunshade-mounted RH marker lights  F92

Available power supply (RH rear marker lights) F93

15-pin trailer socket  F93

Available power supply (LH rear marker lights) F94

15-pin trailer socket  F94

Instruments and controls night lighting - F96

Available power supply (night lighting) F97

Main beam headlights warning light  F100

Fog driving lights warning light  F100

RH main beam headlight  F100

LH dipped beam headlight  F100

LH fog driving light  F100

RH fog driving light  F100

Fog lights warning light F101

RH rear fog light  F101

LH rear fog light  F101

15-pin trailer socket  F101

Principal information display F102

RH long range driving light  F102

LH long range driving light  F102

Available power supply (reverse gear information) F103

Reversing buzzer inhibition controlF103

LH reversing lights F103

RH reversing lights  F103

External horn  F103

15-pin trailer socket  F103

LH stop lights  F104

RH stop lights  F104

15-pin trailer socket  F104

Air/air add-on heater F108
